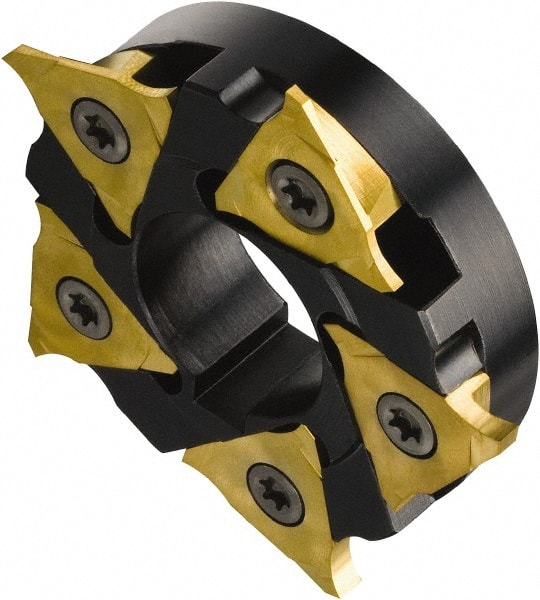

Sandvik Coromant - Arbor Hole Connection, 0.1969" Depth of Cut, 80mm Cutter Diam, 1-1/16" Hole Diam, 8 Tooth Indexable Slotting Cutter - 328-S Toolholder, 328R13-... Insert, Neutral Cutting Direction
Item #: 54950217
Brand: Sandvik Coromant
Model #: 5758764
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 8 |
| Toolholder Style | 328-S |
| Series | CoroMill 328 |
| Insert Style | 328R13-... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 9400 |
| Hub Diameter (Decimal Inch) | 2.6772 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Keyway Width (mm) | 7.00 |
| Maximum Body Diameter (Decimal Inch) | 0.6299 |
| Maximum Body Diameter (mm) | 16 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5758764 |
| Complete Insert Compatibility1 | 328R13-04 UN-TH; 328R13-06 UN-TH; 328R13-08 UN-TH; 328R13-10 UN-TH; 328R13-11 UN-TH; 328R13-110 45-GC; 328R13-12 UN-TH; 328R13-130 00-GM; 328R13-130 4509-GC; 328R13-130 45-GC; 328R13-14 UN-TH; 328R13-150 MM-TH; 328R13-150 VM-TH; 328R13-16 UN-TH; 328R13-16 |
| Overall Height (mm) | 16.00 |
| Overall Height (Decimal Inch) | 0.6299 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
