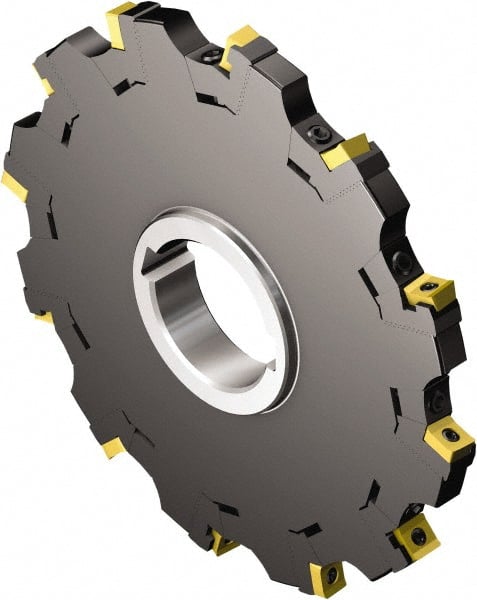

Sandvik Coromant - Arbor Hole Connection, 0.9252" Cutting Width, 4.311" Depth of Cut, 12" Cutter Diam, 2-1/2" Hole Diam, 20 Tooth Indexable Slotting Cutter - 2-1/2" Shank Diam, N331.32..Txx Toolholder, N331.32..Txx Insert, Neutral Cutting Direction
Item #: 54950316
Brand: Sandvik Coromant
Model #: 6448887
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 23.50 |
| Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Depth of Cut (mm) | 109.50 |
| Maximum Depth of Cut (Decimal Inch) | 4.3110 |
| Cutter Diameter (mm) | 304.80 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Cutter Diameter (Inch) | 12 |
| Hole Diameter (Inch) | 2-1/2 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Shank Diameter (Inch) | 2 1/2 |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Number of Teeth | 20 |
| Toolholder Style | N331.32..Txx |
| Series | CoroMill 331 |
| Insert Style | N331.32..Txx |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 20 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 6300 |
| Minimum Cutting Width (Decimal Inch) | 0.9252 |
| Maximum Cutting Width (Decimal Inch) | 1.0433 |
| Hub Diameter (Decimal Inch) | 3.3070 |
| Keyway Width (Inch) | 5/8 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Rake | Positive |
| Lead Angle | 90 |
| Maximum Body Diameter (Decimal Inch) | 12.0000 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 6448887 |
| Complete Insert Compatibility1 | N331.1A-14 |
| Overall Height (Decimal Inch) | 1.0830 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
