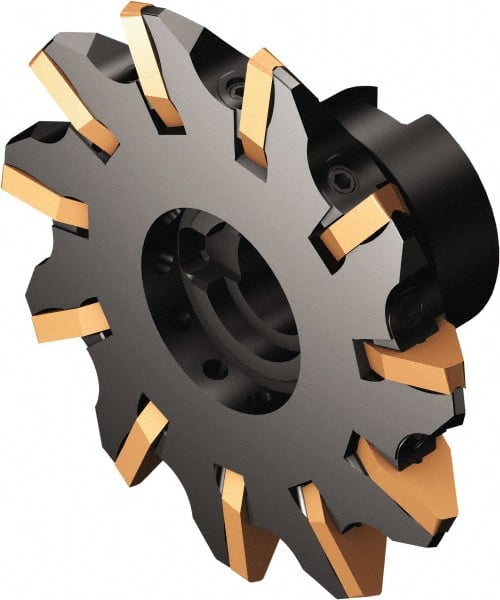

Sandvik Coromant - Shell Mount Connection, 0.3858" Depth of Cut, 90mm Cutter Diam, 1-1/16" Hole Diam, 11 Tooth Indexable Slotting Cutter - 162..Qxx Toolholder, 176M40-N100608E-PM Insert, Right Hand Cutting Direction
Item #: 54950480
Brand: Sandvik Coromant
Model #: 6565253
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Maximum Depth of Cut (mm) | 9.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.3858 |
| Cutter Diameter (mm) | 90.00 |
| Cutter Diameter (Decimal Inch) | 3.5433 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 11 |
| Toolholder Style | 162..Qxx |
| Series | CoroMill 162 |
| Insert Style | 176M40-N100608E-PM |
| Staggered Tooth | No |
| Number of Cutter Inserts | 11 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Maximum RPM | 2000 |
| Lead Angle | 70 |
| Maximum Body Diameter (Decimal Inch) | 2.8347 |
| Maximum Body Diameter (mm) | 72 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 6565253 |
| Complete Insert Compatibility2 | 176M40-N100608E-PM |
| Complete Insert Compatibility1 | 176M40-N100608E-PM |
| Overall Height (mm) | 48.00 |
| Overall Height (Decimal Inch) | 1.8898 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
