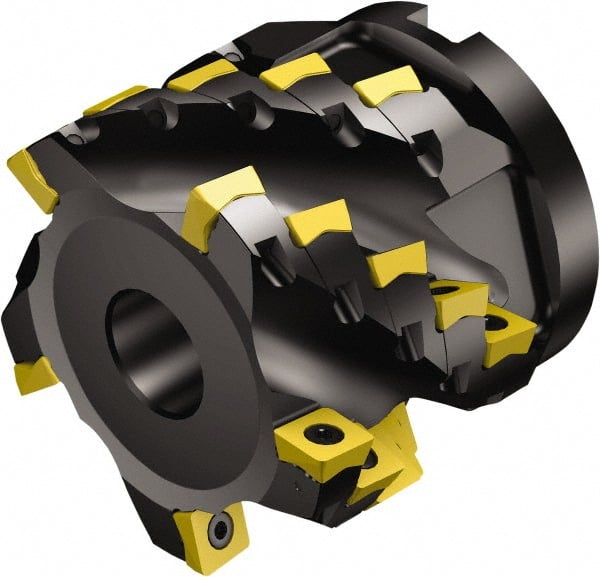

Sandvik Coromant - 3 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 1.811" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 3" High, 690-100508M-E-SL & 690-100510M-P-SL Insert Compatibility, Series CoroMill 690
Item #: 54950985
Brand: Sandvik Coromant
Model #: 5723641
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.9921 |
| Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 1.8110 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | A690 |
| Maximum RPM | 5000 |
| Cutting Edge Length (Decimal Inch) | 1.8110 |
| ISO Number | A690051R191046H |
| Complete Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Toolholder Material | Steel |
