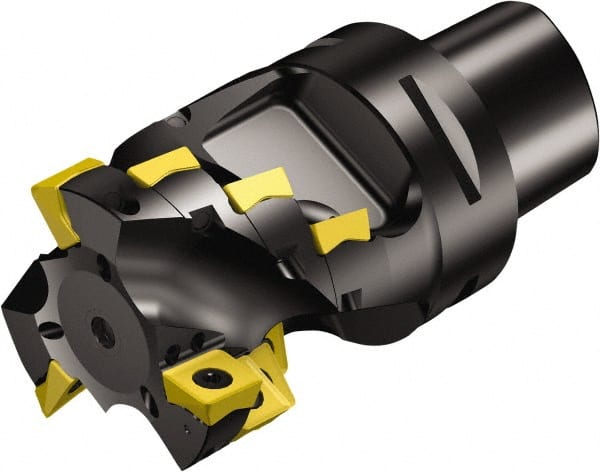

Sandvik Coromant - 4 Inserts, 84mm Cut Diam, 80mm Arbor Diam, 61mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 110mm High, 690-140608M-E-SL & 690-140610M-P-SL Insert Compatibility, Through Coolant, Series CoroMill 690
Item #: 54951116
Brand: Sandvik Coromant
Model #: 5764711
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 84.00 |
| Cutting Diameter (Decimal Inch) | 3.3071 |
| Arbor Hole Diameter (mm) | 80.00 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Lead Angle | 90 |
| Overall Height (mm) | 110.00 |
| Overall Height (Decimal Inch) | 4.3307 |
| Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 61.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.4016 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | 690 |
| Maximum RPM | 5000 |
| Cutting Edge Length (Decimal Inch) | 2.4016 |
| ISO Number | 690084C81461M |
| Complete Insert Compatibility | 690-140608M-E-SL; 690-140610M-P-SL |
| Toolholder Material | Steel |
