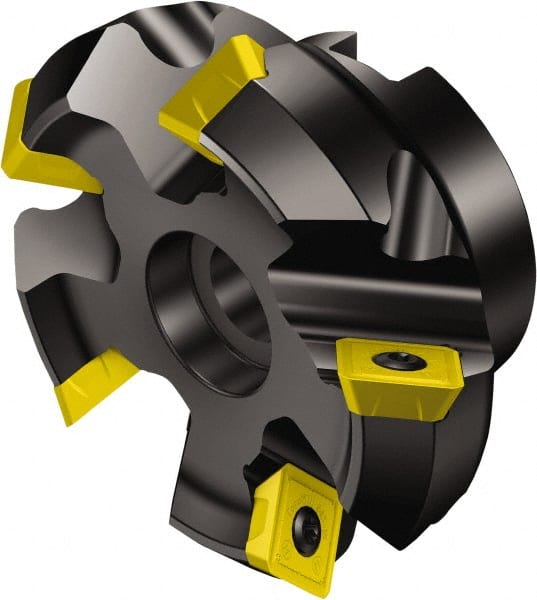

Sandvik Coromant - 100mm Cut Diam, 32mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, R245-12T3.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 54951371
Brand: Sandvik Coromant
Model #: 5743863
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | R245-12T3.. |
| Series | CoroMill 245 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 7 |
| Cutter Style | R245..Qxx |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Maximum RPM | 11300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-12T3.. |
| Toolholder Material | Steel |
