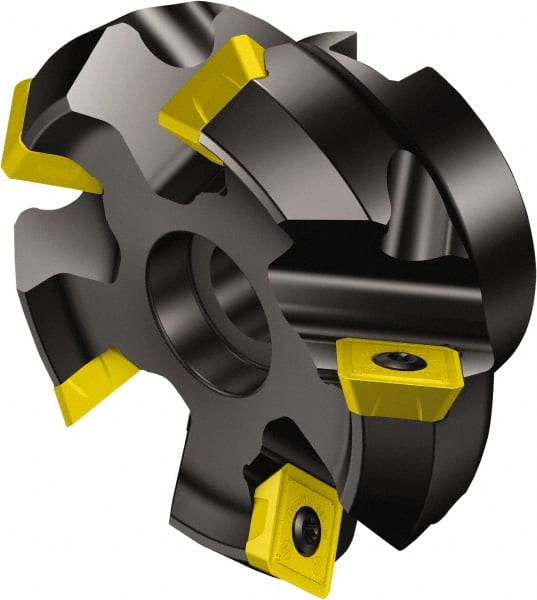

Sandvik Coromant - 3" Cut Diam, 1" Arbor Hole, 0.3937" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, R245-18T6.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 54951421
Brand: Sandvik Coromant
Model #: 5739697
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | R245-18T6.. |
| Series | CoroMill 245 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 4 |
| Cutter Style | RA245..Rxx |
| Keyway Width (Decimal Inch) | 0.3839 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-18T6.. |
| Toolholder Material | Steel |
