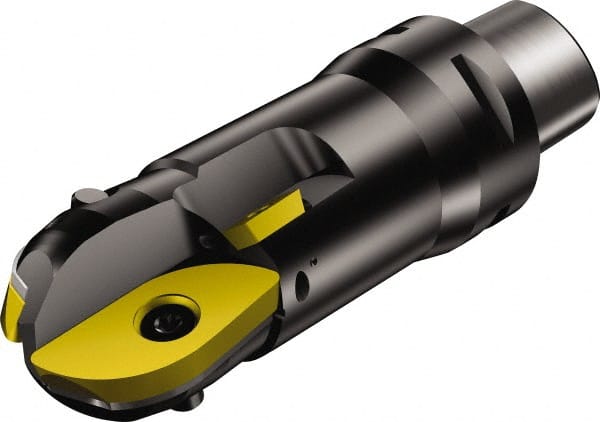

Sandvik Coromant - 2" Cut Diam, 1.791" Max Depth of Cut, 50mm Shank Diam, 6.1024" OAL, Indexable Ball Nose End Mill - 4.9213" Head Length, C5 Modular Connection, RA216.. Cx Toolholder, APMT 160408-M, RA216-51 07 Insert
Item #: 54951611
Brand: Sandvik Coromant
Model #: 5738375
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.7910 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | C5 |
| Shank Diameter (mm) | 50.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | APMT 160408-M; RA216-51 07 |
| Toolholder Style | RA216.. Cx |
| Series | CoroMill 216 |
| Overall Length (Decimal Inch) | 6.1024 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 4.9213 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Maximum RPM | 7000 |
| Projection (Decimal Inch) | 4.9213 |
