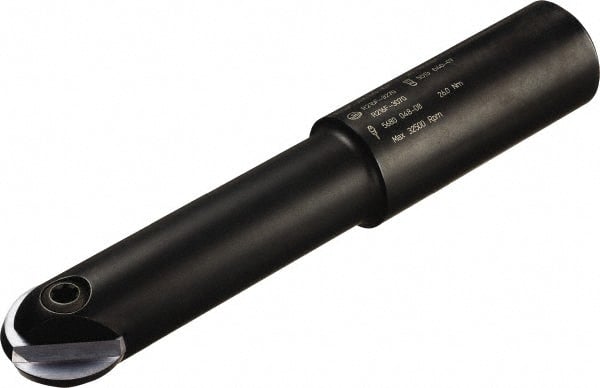

Sandvik Coromant - 16mm Cut Diam, 2.4mm Max Depth of Cut, 20mm Shank Diam, 166mm OAL, Indexable Ball Nose End Mill - 29.25mm Head Length, Straight Shank, R216F.. AC Toolholder, R216F-16.. Insert
Item #: 54951660
Brand: Sandvik Coromant
Model #: 5743710
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | R216F-16.. |
| Toolholder Style | R216F.. AC |
| Series | CoroMill 216F |
| Overall Length (mm) | 166.00 |
| Overall Length (Decimal Inch) | 6.5354 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 29.25 |
| Head Length (Decimal Inch) | 1.1516 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Maximum RPM | 25500 |
| Projection (mm) | 116.00 |
| Projection (Decimal Inch) | 4.5669 |
