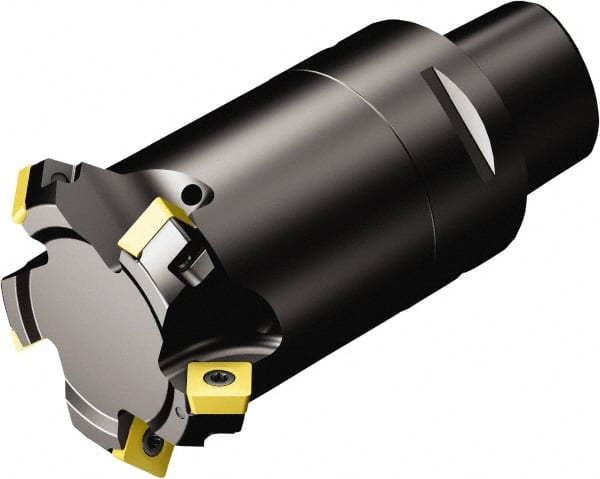

Sandvik Coromant - 50.5mm Cut Diam, 50mm Arbor Hole, 5.47mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, 495-09T3M-XL Insert, Right Hand Cut, Through Coolant, Series CoroMill 495
Item #: 54951819
Brand: Sandvik Coromant
Model #: 6536293
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.50 |
| Cutting Diameter (Decimal Inch) | 1.9882 |
| Arbor Hole Diameter (mm) | 50.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 4.1339 |
| Overall Height (mm) | 105.00 |
| Insert Compatibility | 495-09T3M-XL |
| Series | CoroMill 495 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.47 |
| Maximum Depth of Cut (Decimal Inch) | 0.2154 |
| Number of Cutter Inserts | 6 |
| Cutter Style | 495..Cx |
| Maximum Body Diameter (Decimal Inch) | 1.9573 |
| Maximum RPM | 5300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 495-09T3M-XL |
| Toolholder Material | Steel |
