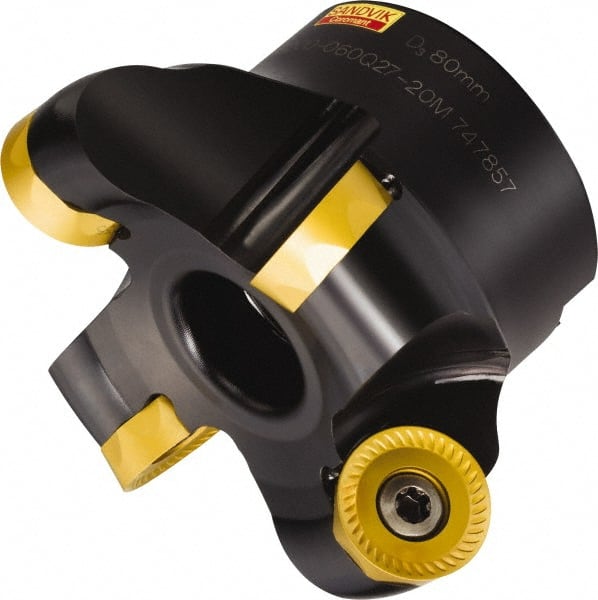

Sandvik Coromant - 5 Inserts, 3-1/2" Cutter Diam, 1/4" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/2" Arbor Hole Diam, 0.6331" Keyway Width, 1.9685" High, RA200..Rxx Toolholder, RCKT 13 04 00 Inserts, Series CoroMill 200
Item #: 54952098
Brand: Sandvik Coromant
Model #: 5738560
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.5000 |
| Cutting Diameter (Inch) | 3-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | CoroMill 200 |
| Cutter Style | RA200..Rxx |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RCKT 13 04 00 |
| Cutting Direction | Right Hand |
| Maximum RPM | 16200 |
| Through Coolant | No |
| Complete Insert Compatibility | RCKT 13 04 00 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Manufacturers Catalog Number | 5738560 |
