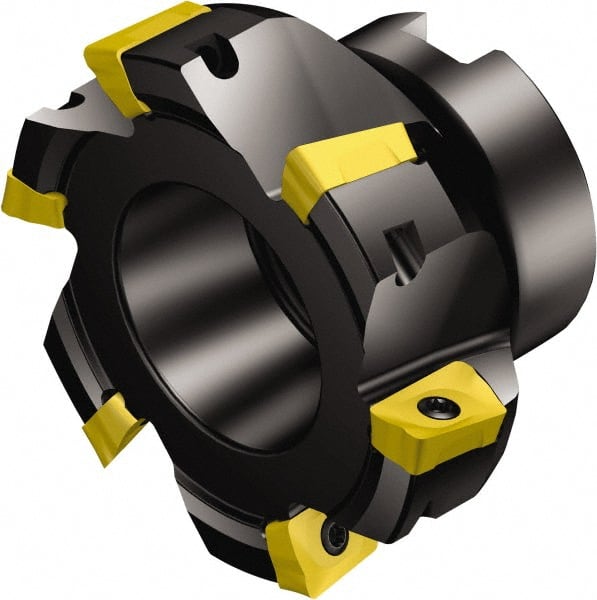

Sandvik Coromant - 10 Inserts, 8" Cut Diam, 2-1/2" Arbor Diam, 0.6063" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.4803" High, R390-18.. Insert Compatibility, Series CoroMill 390
Item #: 54952221
Brand: Sandvik Coromant
Model #: 5740319
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 8 |
| Cutting Diameter (Decimal Inch) | 8.0000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA390 |
| Maximum RPM | 3500 |
| Cutting Edge Length (Decimal Inch) | 0.6063 |
| ISO Number | RA390203R6318L |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
