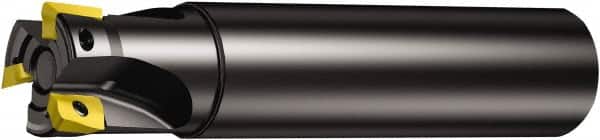

Sandvik Coromant - 25mm Cut Diam, 15.7mm Max Depth, 25mm Shank Diam, Cylindrical Shank, 210mm OAL, Indexable Square-Shoulder End Mill
Item #: 54952650
Brand: Sandvik Coromant
Model #: 5745453
Product Specifications
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9844 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Overall Length/Projection (mm) | 210.00 |
| Overall Length/Projection (Decimal Inch) | 8.2677 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R390-025A25L-17L |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Insert Compatibility | R390-17 04 04M-PM; R390-17 04 08E-PL; R390-17 04 08M-PL |
| Shank Length (Decimal Inch) | 6.2992 |
| Maximum RPM | 11,000 |
| Toolholder Material | Steel |
