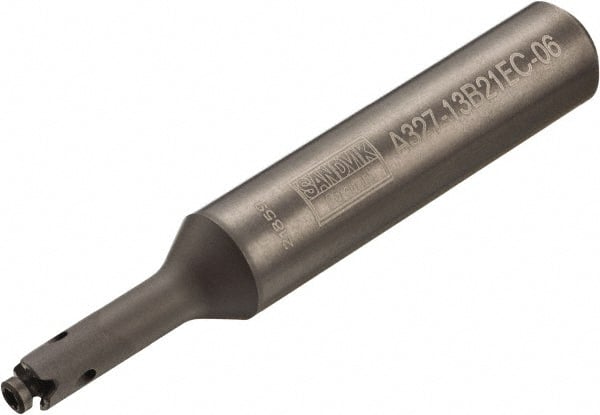

Sandvik Coromant - CoroMill 327 5/8" Weldon Shank Milling Tip Insert Holder & Shank - 4.8621" Projection, 0.563" Neck Diam, 0.563" Nose Diam, 4.8621" OAL, Carbide A327-xxB Tool Holder
Item #: 54952668
Brand: Sandvik Coromant
Model #: 5722553
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Shank Type | Weldon Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Projection (Decimal Inch) | 4.8621 |
| Neck Diameter (Decimal Inch) | 0.5630 |
| Nose Diameter (Decimal Inch) | 0.5630 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 4.8621 |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 2.1061 |
| Maximum Diameter (Decimal Inch) | 0.5630 |
| Shank Material | Carbide |
| Toolholder Style | A327-xxB |
