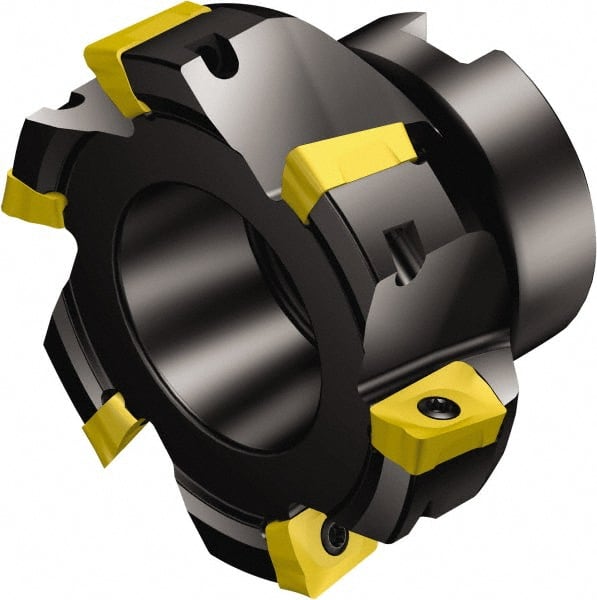

Sandvik Coromant - 5 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 15.7mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, R390-17.. Insert Compatibility, Series CoroMill 390
Item #: 54952726
Brand: Sandvik Coromant
Model #: 5745784
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | R390-17.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R390 |
| Maximum RPM | 19000 |
| Cutting Edge Length (Decimal Inch) | 0.6181 |
| ISO Number | R390050Q2217H |
| Complete Insert Compatibility | R390-17.. |
| Toolholder Material | Steel |
