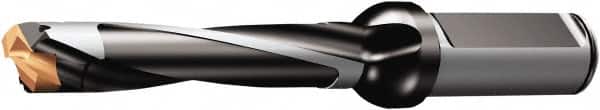

Sandvik Coromant - 22 to 22.99mm Diam, 5.17162xD, 118.43mm Max Depth, 25mm Shank Diam, 199mm OAL, Replaceable Tip Drill - 870-2290-22-PM Insert, 22 Seat Size, 870..L-5 Toolholder, Series CoroDrill 870
Item #: 54953492
Brand: Sandvik Coromant
Model #: 6239448
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 22.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (mm) | 22.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9051 |
| Drill Depth by Diameter Ratio | 5.17162xD |
| Maximum Drill Depth (Decimal Inch) | 4.6626 |
| Maximum Drill Depth (mm) | 118.43 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Style | 870-2290-22-PM |
| Insert Seat Size | 22 |
| Toolholder Style | 870..L-5 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (mm) | 3.47 |
| Tip Length (Decimal Inch) | 0.1366 |
| Body Length (mm) | 122.00 |
| Body Length (Decimal Inch) | 4.8032 |
| Overall Length (mm) | 199.00 |
| Overall Length (Decimal Inch) | 7.8347 |
| Toolholder Material | Steel |
| Shank Length (mm) | 59.47 |
| Shank Length (Decimal Inch) | 2.3413 |
