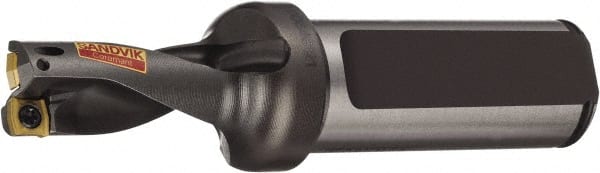

Sandvik Coromant - 37mm Max Drill Depth, 2xD, 16.5mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Flange Shank
Item #: 54955364
Brand: Sandvik Coromant
Model #: 5962261
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 16.50 |
| Drill Diameter (Decimal Inch) | 0.6496 |
| Maximum Drill Depth (mm) | 37.00 |
| Maximum Drill Depth (Decimal Inch) | 1.4567 |
| Shank Type | Flange |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 17.70 |
| Overall Length/Projection (mm) | 102.00 |
| Overall Length/Projection (Decimal Inch) | 4.0158 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Flute Length (mm) | 33.00 |
| Flute Length (Decimal Inch) | 1.2992 |
| Body Length (Decimal Inch) | 2.0366 |
| Body Length (mm) | 51.73 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.60 |
