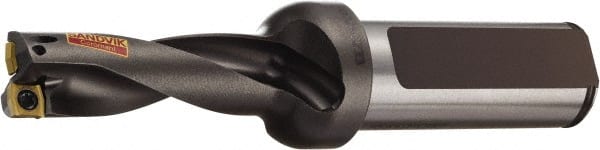

Sandvik Coromant - 68mm Max Drill Depth, 3.02326xD, 21.5mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Flange Shank
Item #: 54955737
Brand: Sandvik Coromant
Model #: 5962346
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 21.50 |
| Drill Diameter (Decimal Inch) | 0.8465 |
| Maximum Drill Depth (mm) | 68.00 |
| Maximum Drill Depth (Decimal Inch) | 2.6772 |
| Shank Type | Flange |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.02326xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 24.10 |
| Overall Length/Projection (mm) | 142.00 |
| Overall Length/Projection (Decimal Inch) | 5.5906 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Flute Length (mm) | 65.00 |
| Flute Length (Decimal Inch) | 2.5591 |
| Body Length (Decimal Inch) | 3.3516 |
| Body Length (mm) | 85.13 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.30 |
