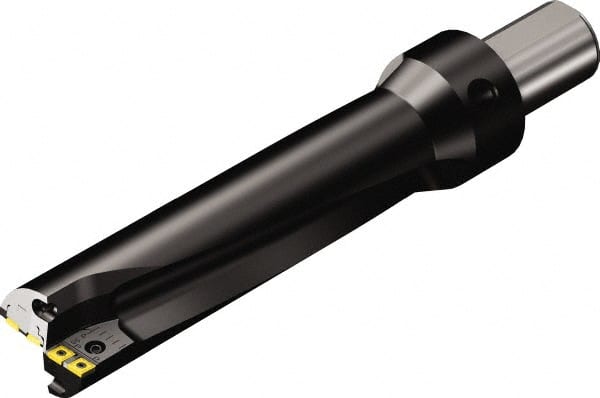

Sandvik Coromant - 14.6303" Max Drill Depth, 4.09756xD, 82mm Diam, Indexable Insert Drill - 2 Inserts, 2" Shank Diam, Flange Shank
Item #: 54955810
Brand: Sandvik Coromant
Model #: 6660456
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 82.00 |
| Drill Diameter (Decimal Inch) | 3.2284 |
| Maximum Drill Depth (Decimal Inch) | 14.6303 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4.09756xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 3.0710 |
| Overall Length/Projection (Decimal Inch) | 20.3780 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (Decimal Inch) | 13.2283 |
| Body Length (Decimal Inch) | 16.3189 |
| Shank Length (Decimal Inch) | 4.0591 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
