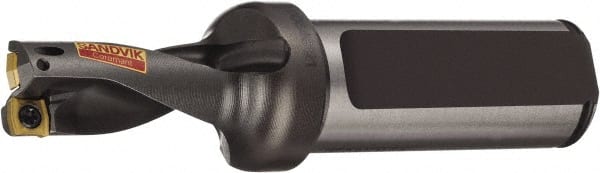

Sandvik Coromant - 39mm Max Drill Depth, 2xD, 17.5mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Flange Shank
Item #: 54956164
Brand: Sandvik Coromant
Model #: 5962281
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 17.50 |
| Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Depth (mm) | 39.00 |
| Maximum Drill Depth (Decimal Inch) | 1.5354 |
| Shank Type | Flange |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 19.50 |
| Overall Length/Projection (mm) | 111.00 |
| Overall Length/Projection (Decimal Inch) | 4.3701 |
| Insert Compatibility | 881-03 03 08M-C-GM1; 881-03 03 08M-P-GM1 |
| Flute Length (mm) | 35.00 |
| Flute Length (Decimal Inch) | 1.3780 |
| Body Length (Decimal Inch) | 2.1370 |
| Body Length (mm) | 54.28 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.00 |
