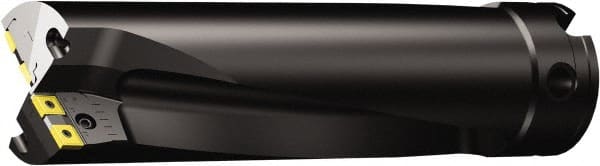

Sandvik Coromant - 287.61mm Max Drill Depth, 3.03614xD, 83mm Diam, Indexable Insert Drill - 80 Modular Connection Shank
Item #: 54956263
Brand: Sandvik Coromant
Model #: 6660382
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 83.00 |
| Drill Diameter (Decimal Inch) | 3.2677 |
| Maximum Drill Depth (mm) | 287.61 |
| Maximum Drill Depth (Decimal Inch) | 11.3232 |
| Shank Type | Modular Connection |
| Modular Connection Size | 80 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.03614xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 3.0709 |
| Maximum Drill Diameter (mm) | 78.00 |
| Overall Length/Projection (mm) | 350.00 |
| Overall Length/Projection (Decimal Inch) | 13.7795 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 252.00 |
| Flute Length (Decimal Inch) | 9.9213 |
| Body Length (Decimal Inch) | 13.0118 |
| Body Length (mm) | 330.50 |
| Shank Length (mm) | 19.50 |
| Shank Length (Decimal Inch) | 0.7677 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
