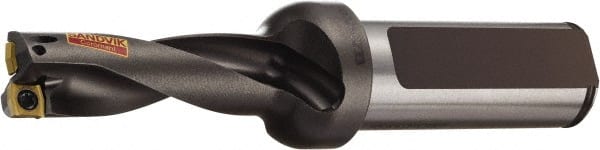

Sandvik Coromant - 50mm Max Drill Depth, 3.03226xD, 15.5mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Flange Shank
Item #: 54956842
Brand: Sandvik Coromant
Model #: 5962242
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Depth (mm) | 50.00 |
| Maximum Drill Depth (Decimal Inch) | 1.9685 |
| Shank Type | Flange |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.03226xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Diameter (mm) | 17.00 |
| Overall Length/Projection (mm) | 114.00 |
| Overall Length/Projection (Decimal Inch) | 4.4882 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Body Length (Decimal Inch) | 2.5091 |
| Body Length (mm) | 63.73 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.75 |
