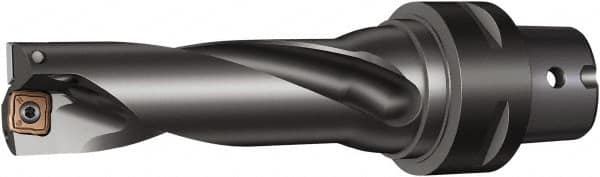

Sandvik Coromant - 2.953" Max Drill Depth, 3xD, 0.937" Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank
Item #: 54957410
Brand: Sandvik Coromant
Model #: 6328025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Depth (Decimal Inch) | 2.9530 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9370 |
| Overall Length/Projection (Decimal Inch) | 5.6651 |
| Insert Compatibility | 880-040305H-C-GM; 880-0403W05H-P-GM |
| Flute Length (Decimal Inch) | 2.8110 |
| Body Length (Decimal Inch) | 4.4659 |
| Shank Length (Decimal Inch) | 1.1992 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.35 |
