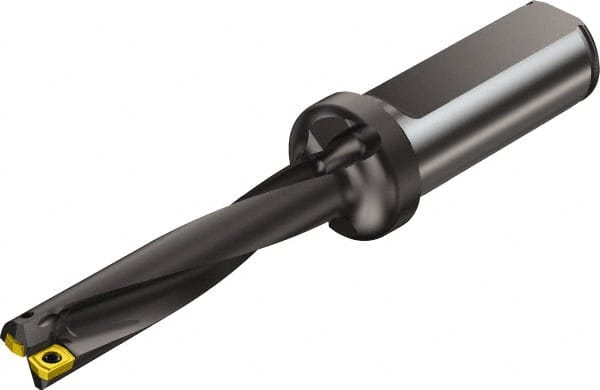

Sandvik Coromant - 189mm Max Drill Depth, 5xD, 37mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Flange Shank
Item #: 54957436
Brand: Sandvik Coromant
Model #: 5765429
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 37.00 |
| Drill Diameter (Decimal Inch) | 1.4567 |
| Maximum Drill Depth (mm) | 189.00 |
| Maximum Drill Depth (Decimal Inch) | 7.4410 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Maximum Drill Diameter (mm) | 39.50 |
| Overall Length/Projection (mm) | 286.00 |
| Overall Length/Projection (Decimal Inch) | 11.2598 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 185.00 |
| Flute Length (Decimal Inch) | 7.2835 |
| Body Length (Decimal Inch) | 8.4803 |
| Body Length (mm) | 215.40 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.25 |
