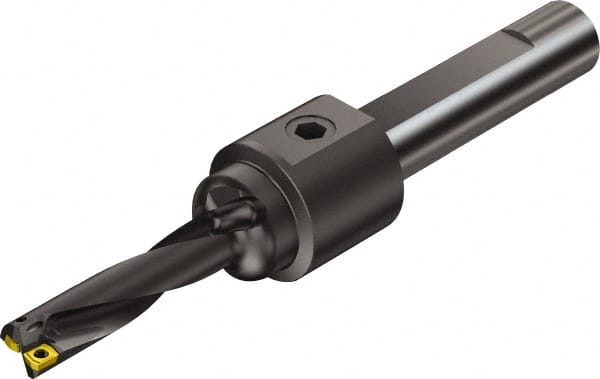

Sandvik Coromant - 6.142" Max Drill Depth, 4xD, 1-1/2" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Flange Shank
Item #: 54958152
Brand: Sandvik Coromant
Model #: 5724005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Inch) | 1-1/2 |
| Drill Diameter (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (Decimal Inch) | 6.1420 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5880 |
| Overall Length/Projection (Decimal Inch) | 11.4830 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (Decimal Inch) | 6.0000 |
| Body Length (Decimal Inch) | 8.4574 |
| Shank Length (Decimal Inch) | 3.0256 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.11 |
