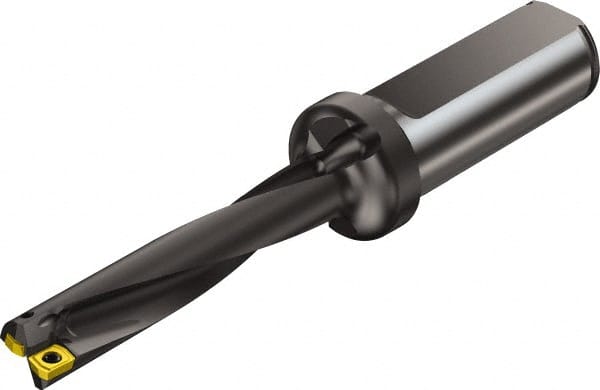

Sandvik Coromant - 159mm Max Drill Depth, 5xD, 31mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Flange Shank
Item #: 54958186
Brand: Sandvik Coromant
Model #: 5765312
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 31.00 |
| Drill Diameter (Decimal Inch) | 1.2205 |
| Maximum Drill Depth (mm) | 159.00 |
| Maximum Drill Depth (Decimal Inch) | 6.2598 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Maximum Drill Diameter (mm) | 33.00 |
| Overall Length/Projection (mm) | 253.00 |
| Overall Length/Projection (Decimal Inch) | 9.9606 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (mm) | 155.00 |
| Flute Length (Decimal Inch) | 6.1024 |
| Body Length (Decimal Inch) | 7.1843 |
| Body Length (mm) | 182.48 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.99 |
