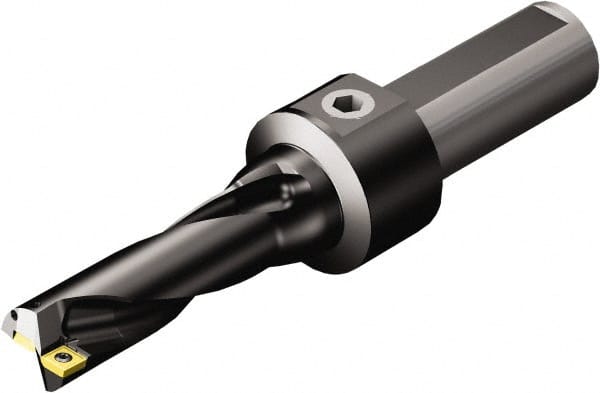

Sandvik Coromant - 3.898" Max Drill Depth, 3xD, 1-1/4" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Flange Shank
Item #: 54958376
Brand: Sandvik Coromant
Model #: 5723274
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Decimal Inch) | 3.8980 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.3210 |
| Overall Length/Projection (Decimal Inch) | 9.0890 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (Decimal Inch) | 3.7500 |
| Body Length (Decimal Inch) | 6.0653 |
| Shank Length (Decimal Inch) | 3.0237 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.90 |
