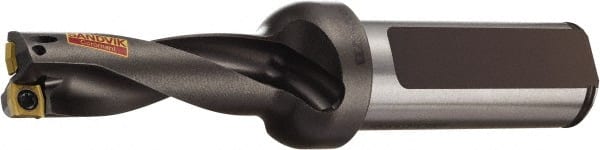

Sandvik Coromant - 2.756" Max Drill Depth, 3xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Flange Shank
Item #: 54958533
Brand: Sandvik Coromant
Model #: 5962406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Inch) | 7/8 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Decimal Inch) | 2.7560 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9690 |
| Overall Length/Projection (Decimal Inch) | 5.7087 |
| Insert Compatibility | 881-04 03 08M-C-GM1; 881-04 03 08M-P-GM1 |
| Flute Length (Decimal Inch) | 2.6250 |
| Body Length (Decimal Inch) | 3.4697 |
| Shank Length (Decimal Inch) | 2.2390 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.19 |
