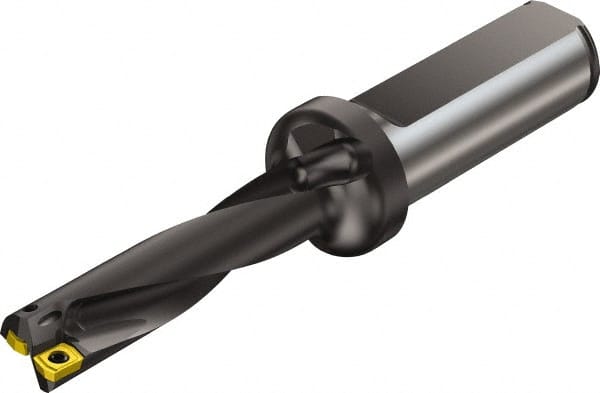

Sandvik Coromant - 2.23" Max Drill Depth, 4xD, 0.531" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 54958657
Brand: Sandvik Coromant
Model #: 5723467
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 0.5310 |
| Maximum Drill Depth (Decimal Inch) | 2.2300 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5510 |
| Overall Length/Projection (Decimal Inch) | 4.6885 |
| Insert Compatibility | 880-010203H-C-GR; 880-0102W04-P-GR |
| Flute Length (Decimal Inch) | 2.1240 |
| Body Length (Decimal Inch) | 2.7048 |
| Shank Length (Decimal Inch) | 1.9837 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
