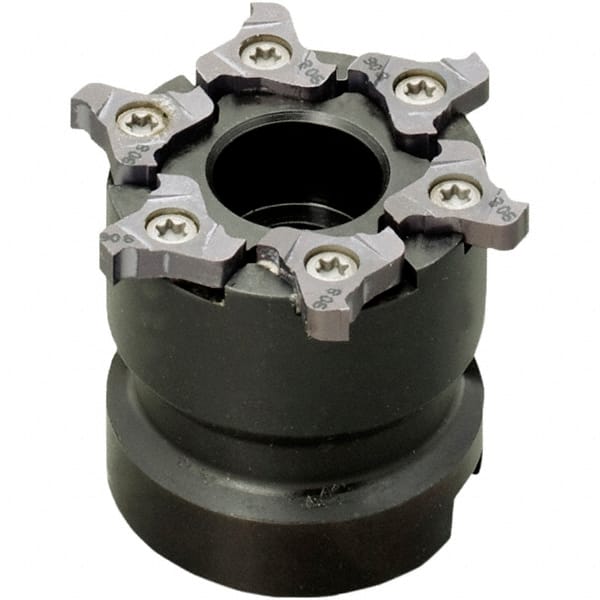

Iscar - Arbor Hole Connection, 0.256" Cutting Width, 0.189" Depth of Cut, 3" Cutter Diam, 1" Hole Diam, 11 Tooth Indexable Slotting Cutter - TRIB-SM Toolholder, TRI Insert, Right Hand Cutting Direction
Item #: 54966494
Brand: Iscar
Model #: 2302285
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.2560 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 11 |
| Toolholder Style | TRIB-SM |
| Series | ChamSlit(TRIB-SM) |
| Insert Style | TRI |
| Number of Cutter Inserts | 11 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1580 |
| Maximum Cutting Width (Decimal Inch) | 0.2560 |
| Hub Diameter (Decimal Inch) | 2.5940 |
| Cutter Body Width (Decimal Inch) | 1.9270 |
| Complete Insert Compatibility1 | TRI 16RK-4.25-0.15; TRI 16RK-5.0-0.2; TRI 16RK-5.25-0.15; TRI 16RK-6.0-0.2 |
