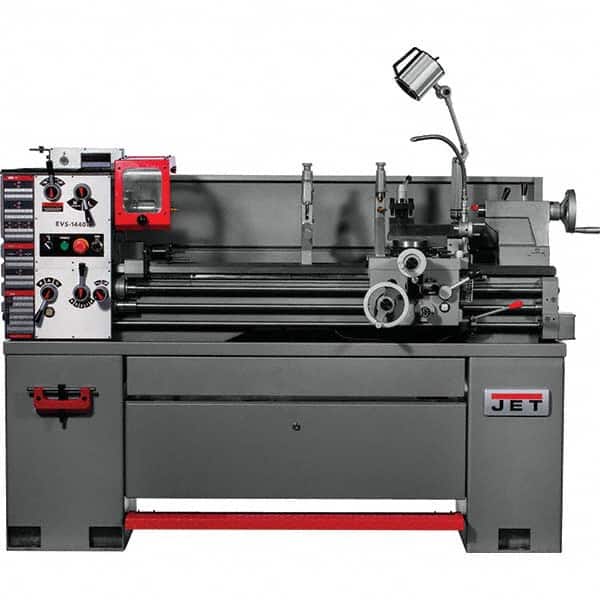

Jet - Bench, Engine & Toolroom Lathes Machine Type: Bench Lathe Spindle Speed Control: Electronic Variable Speed
Item #: 17987660
Brand: Jet
Model #: 311446
Features and Benefits
Bench lathes are used for light- to medium-duty work and are mounted onto a workbench or stand. They are capable of machining larger work than hobby lathes with swings of 9" to 13".
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Bench, Engine & Toolroom Lathes; Machine Type: Bench Lathe ; Spindle Speed Control: Electronic Variable Speed ; Phase: 3 ; Voltage: 230/460 ; Horsepower (HP): 3 ; Swing (Inch): 14
| Machine Type | Bench Lathe |
| Spindle Speed Control | Electronic Variable Speed |
| Phase | 3 |
| Voltage | 230/460 |
| Horsepower (HP) | 3 |
| Swing (Inch) | 14 |
| Distance Between Centers (Inch) | 40 |
| Spindle Bore Diameter (Inch) | 1-1/2 |
| Spindle Taper Size | 3MT |
| Spindle Taper Size (Sleeve) | 5MT |
| Swing Over Gap (Inch) | 19-1/2 |
| Swing Over Cross Slide (Inch) | 7 |
| Gap Length (Decimal Inch) | 9.5000 |
| Bed Width (Decimal Inch) | 7.4800 |
| Spindle Nose Designation | D1-4 |
| Number of Spindle Speeds | Variable |
| Minimum Spindle Speed (RPM) | 40.00 |
| Maximum Spindle Speed (RPM) | 2000 |
| Number of Inch Threads | 34 |
| Maximum Threads Per Inch | 56 |
| Minimum Metric Pitch (Decimal Inch) | 0.5000 |
| Maximum Metric Pitch (Decimal Inch) | 12.0000 |
| Number of Metric Threads | 34 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0016 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0460 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 25.0000 |
| Top Slide Travel (Decimal Inch) | 3.5000 |
| Tailstock Travel (Decimal Inch) | 6.1250 |
| Tailstock Taper Size | 3MT |
| Overall Length (Decimal Inch) | 68.5000 |
| Overall Height (Decimal Inch) | 50.0000 |
| Overall Depth (Decimal Inch) | 28.3000 |
| Includes 1 | EVS-1440 Electronic Variable Speed Lathe w/Acu-Rite 203 DRO & Collet Closer |
| Certification | CSA/UL |
| Warranty | 2 Year |
