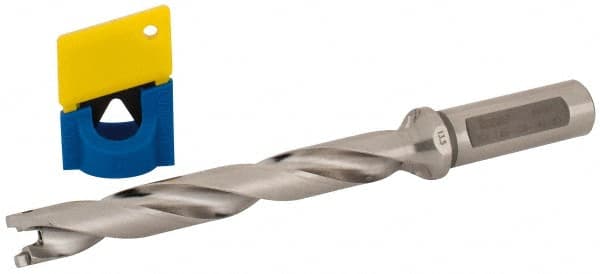

Iscar - 13.5 to 13.9mm Diam, 8xD, 108mm Max Depth, 16mm Shank Diam, 173.6mm OAL, Replaceable Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, ICP-2M Insert, 13 Seat Size, DCN Toolholder, Series SumoCham
Item #: 55000905
Brand: Iscar
Model #: 3203198
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (mm) | 13.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 108.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 13 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 125.60 |
| Overall Length (mm) | 173.60 |
| Shank Length (mm) | 48.00 |
