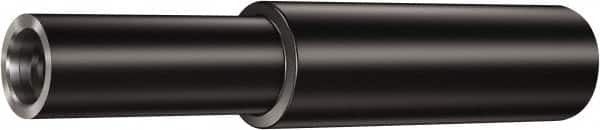

Sandvik Coromant - CoroMill 316 16mm Straight Shank Milling Tip Insert Holder & Shank - 65mm Projection, 0.4567" Neck Diam, 11.6mm Nose Diam, 65mm OAL, Steel Exx-Axx-SS Tool Holder
Item #: 55058465
Brand: Sandvik Coromant
Model #: 5732629
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Projection (mm) | 65.00 |
| Projection (Decimal Inch) | 2.5591 |
| Neck Diameter (Decimal Inch) | 0.4567 |
| Nose Diameter (mm) | 11.60 |
| Nose Diameter (Decimal Inch) | 0.4567 |
| Toolholder Material | Steel |
| Overall Length (mm) | 65.00 |
| Overall Length (Decimal Inch) | 2.5591 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 0.1969 |
| Maximum Diameter (mm) | 11.60 |
| Maximum Diameter (Decimal Inch) | 0.4567 |
| Shank Material | Steel |
| Toolholder Style | Exx-Axx-SS |
