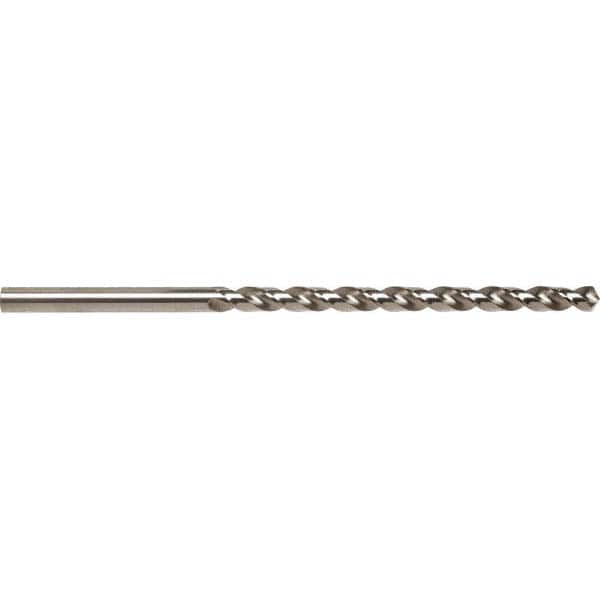

Taper Length Drill Bit: 0.0410″ Dia Bright/Uncoated, RH Cut, Parabolic Flute, Straight Shank, Series 5536
Item #: 55073977
Brand: Guhring
Model #: 9055360010400
Product Specifications
| Drill Bit Size (Wire) | #59 |
| Tool Material | Cobalt |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight |
| Point Type | Four Facet; Split |
| Flute Type | Parabolic |
| Coolant Through | No |
| Shank Diameter (mm) | 1.04 |
| Drill Bit Size (Decimal Inch) | 0.0410 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 5536 |
| Flute Length X Diameter Ratio | 10xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Specification Number | DIN 340 |
