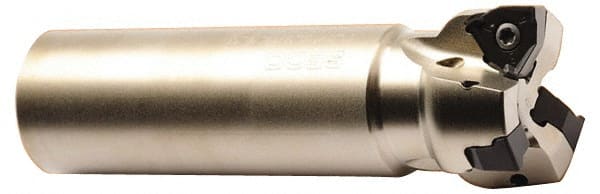

Seco - 40mm Cut Diam, 7.5mm Max Depth of Cut, 32mm Shank Diam, 120mm OAL, Indexable Square Shoulder End Mill - XNEX 0806.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Square 6
Item #: 55189575
Brand: Seco
Model #: 39849
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Overall Length/Projection (mm) | 120.00 |
| Lead Angle | 90 |
| Series | Square 6 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.96 |
| Number of Flutes | 3 |
| Head Length (mm) | 50.00 |
| Weldon Flat | Yes |
| Insert Compatibility | XNEX 0806.. |
| Shank Length (mm) | 60.00 |
| Maximum RPM | 11800 |
