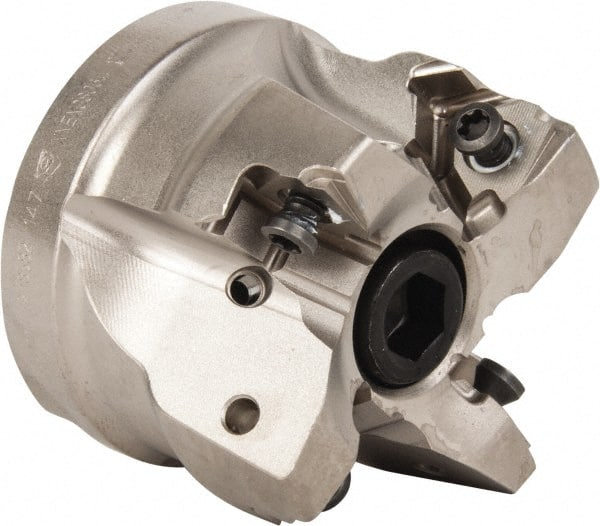

Seco - 4 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.295" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.57" High, XNEX 0806.. Insert Compatibility, Through Coolant, Series Square 6
Item #: 55189740
Brand: Seco
Model #: 43721
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | XNEX 0806.. |
| Series | Square 6 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | R220.96 |
| Number of Flutes | 4 |
| Keyway Width (Decimal Inch) | 0.3200 |
| Maximum RPM | 10600 |
| Pitch | Normal |
