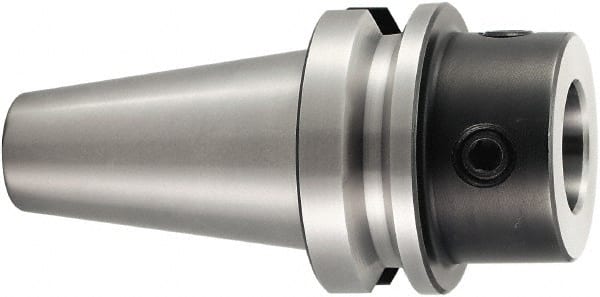

WOHLHAUPTER - MVS28 Inside Modular Connection, M16 Threaded Shank, Boring Head Taper Shank - MVS50 Outside, Modular Connection Mount, 2-1/8 Inch Overall Length, 1.06 Inch Projection
Item #: 55209597
Brand: WOHLHAUPTER
Model #: 327019
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are mounted directly to the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Mount Type | Modular Connection |
| Inside Modular Connection Size | MVS28 |
| Outside Modular Connection Size | MVS50 |
| Threaded Shank Size | M16 |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 1.0600 |
| Projection (mm) | 27.00 |
| Inside Shank Diameter (mm) | 28.00 |
| Inside Shank Diameter (Inch) | 1.1020 |
| Inside Shank Diameter (Decimal Inch) | 1.1020 |
| Overall Length (mm) | 54.00 |
| Overall Length (Decimal Inch) | 2.1260 |
| Through Coolant | Yes |
| Drawbar Thread Size | M16 |
