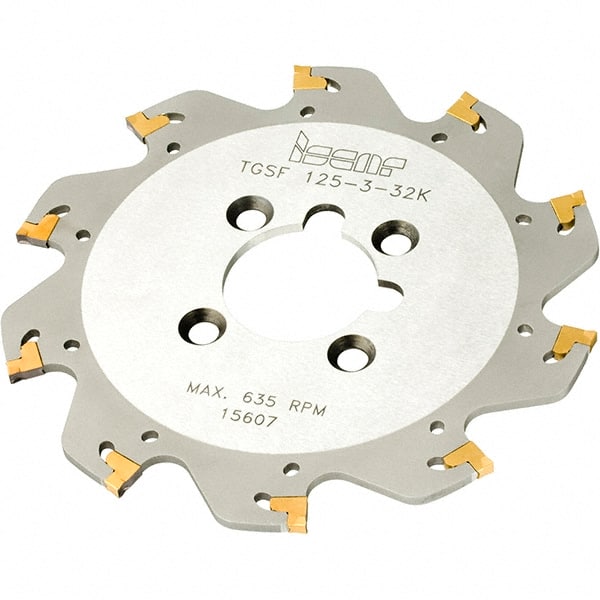

Iscar - Arbor Hole Connection, 0.157" Cutting Width, 1.04" Depth of Cut, 3-15/16" Cutter Diam, 1" Hole Diam, 8 Tooth Indexable Slotting Cutter - TGSF Toolholder, TAG Insert, Right Hand Cutting Direction
Item #: 55362362
Brand: Iscar
Model #: 2302203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (Decimal Inch) | 1.0400 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 8 |
| Toolholder Style | TGSF |
| Series | TangSlit(TGSF) |
| Insert Style | TAG |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 4470 |
| Cutting Radius (Inch) | 1/64 |
| Cutter Body Width (Decimal Inch) | 0.1300 |
| Complete Insert Compatibility1 | TAG N4A; TAG N4CB; TAG N4J; TAG N4LF; TAG N4UT |
