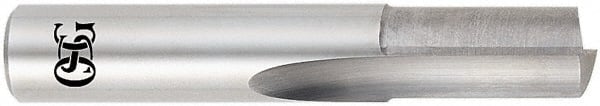

OSG - 1/8" Diam, 1/8" Shank Diam, 1/2" Length of Cut, 2 Flute Straight Router Bit - 1-1/2" Overall Length, Right Hand Cut, Solid Carbide
Item #: 55478168
Brand: OSG
Model #: 500-1250
Exact Tooling IR#: 04
Features and Benefits
Center-cutting router bits are designed with a straight flute and used for general-purpose milling applications. Commonly used on fine milling of metals or milling of non-ferrous exotic materials including Carbon Fiber Reinforced Plastic (CFRP).
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 3.18 |
| Cutting Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.1250 |
| End Type | Centercutting |
| Number of Flutes | 2 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Material Application | Aluminum; Copper; Hard Rubber; Hardwood; Magnisium; Plastics; Plexiglass |
| Material | Solid Carbide |
| Shank Diameter (Inch) | 1/8 |
| Cutting Direction | Right Hand |
| Overall Length (Inch) | 1-1/2 |
| Piloted | No |
| Flute Type | Straight |
