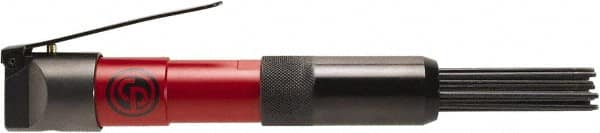

Chicago Pneumatic - 4,000 BPM, 1/2" Bore Diam, Pneumatic Inline Needle Scaler - 1/2" Needle Diam, 7" Needle Length, 1.3" Stroke Length, 4.1 CFM, 90 psi, 1/4 NPT Inlet
Item #: 55492508
Brand: Chicago Pneumatic
Model #: CP7115
Exact Tooling IR#: 04
Features and Benefits
Inline handles are ergonomically designed tools that align the motor, transmission and spindle for one handed actuation with a low profile for performing applications is tight work spaces.
| Product Specifications | |
|---|---|
| Type of Power | Pneumatic |
| Handle Type | Inline |
| Blows Per Minute | 4000 |
| Bore Diameter (mm) | 21.00 |
| Bore Diameter (Inch) | 1/2 |
| Bore Diameter (Decimal Inch) | 0.5000 |
| Needle Diameter (mm) | 21.00 |
| Needle Diameter (Inch) | 1/2 |
| Needle Diameter (Decimal Inch) | 0.5000 |
| Needle Length (mm) | 180.00 |
| Needle Length (Inch) | 7 |
| Stroke Length (Inch) | 1 |
| Stroke Length (Decimal Inch) | 1.3000 |
| Air Consumption (CFM) | 4.10 |
| Air Consumption (LPS) | 2.00 |
| Air Pressure (bar) | 6.30 |
| Air Pressure (psi) | 90.00 |
| Inlet Size (Inch) | 1/4 |
| Inlet Size (Decimal Inch) | 0.2500 |
| Inlet Size (NPT) | 1/4 |
| PSC Code | 5130 |
