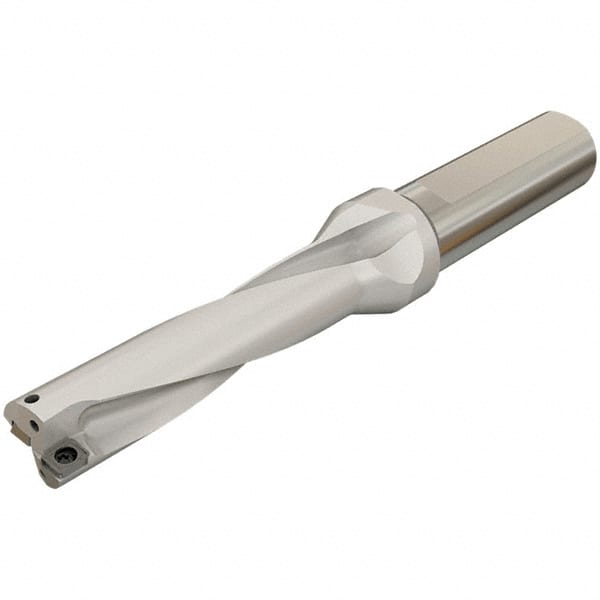

Iscar - 152mm Max Drill Depth, 4xD, 38mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 55533673
Brand: Iscar
Model #: 3201470
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 38.00 |
| Drill Diameter (Decimal Inch) | 1.4961 |
| Maximum Drill Depth (mm) | 152.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 42.00 |
| Overall Length/Projection (mm) | 246.00 |
| Insert Compatibility | SOMT-DT; SOMT-GF |
| Body Length (mm) | 188.00 |
| Shank Length (mm) | 58.00 |
| Collar Diameter (mm) | 50.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | G1/2-14 |
