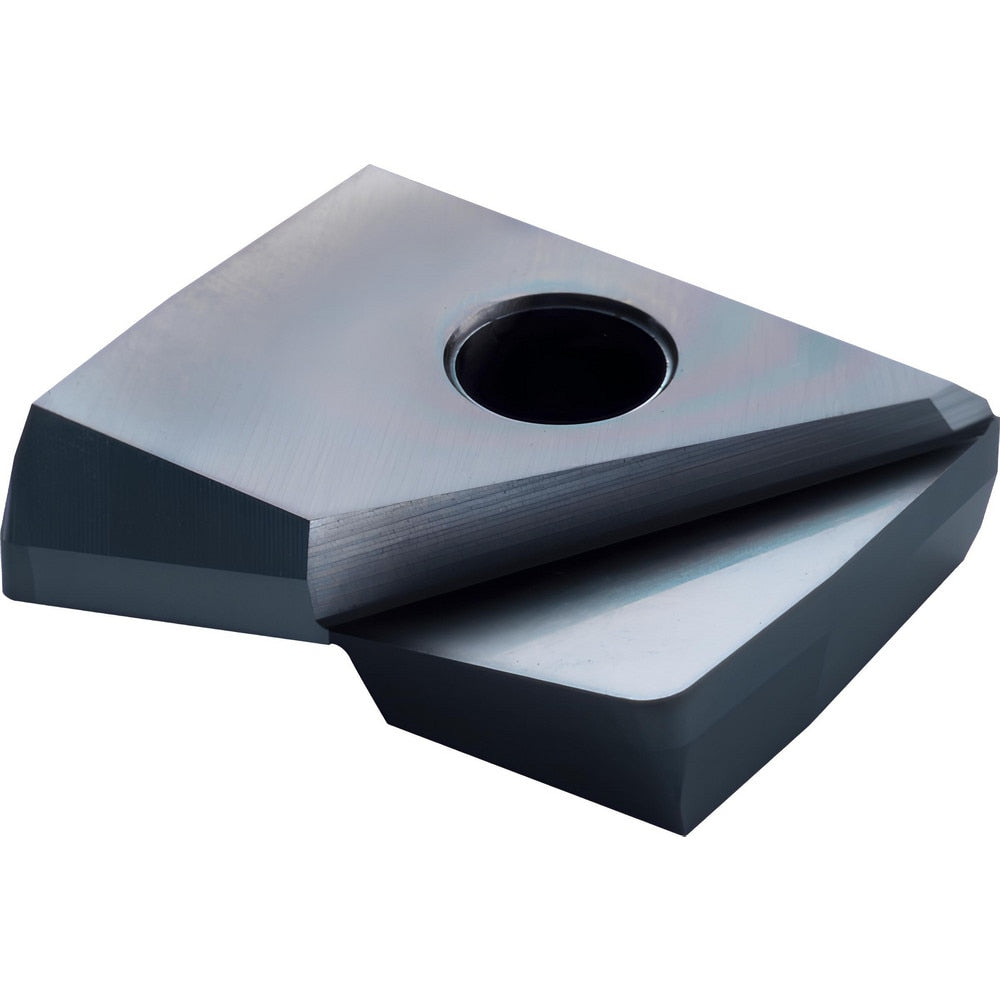

Milling Insert: PFR0500R030-SH XP3310, Solid Carbide
Item #: 55808117
Brand: OSG
Model #: 52201055
Product Specifications
| Insert Style | PFR |
| Insert Size | 0500 |
| Insert Material | Solid Carbide |
| Insert Shape | Bull Nose |
| Manufacturer Grade | XP3310 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| Thickness (mm) | 3.00 |
| Coating/Finish | SiC |
| Insert Size Code | 0500 |
| Width (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Series | 78PFR |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | PFR0500R030-SH |
| Iso Code | PFR0500R030-SH |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 52201055 |
| Cutter Series Compatibility | 78PFR |
| Chip Breaker | SH |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
| Insert Style | PFR |
| Insert Size | 0500 |
| Insert Material | Solid Carbide |
| Insert Shape | Bull Nose |
| Manufacturer Grade | XP3310 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
| Thickness (mm) | 3.00 |
| Coating/Finish | SiC |
| Insert Size Code | 0500 |
| Width (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Series | 78PFR |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | PFR0500R030-SH |
| Iso Code | PFR0500R030-SH |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 52201055 |
| Cutter Series Compatibility | 78PFR |
| Chip Breaker | SH |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
| MSC Part # | 55808117 |
| Mfr Part # | 52201055 |
| Country of Origin Country of Origin is subject to change | Japan |
