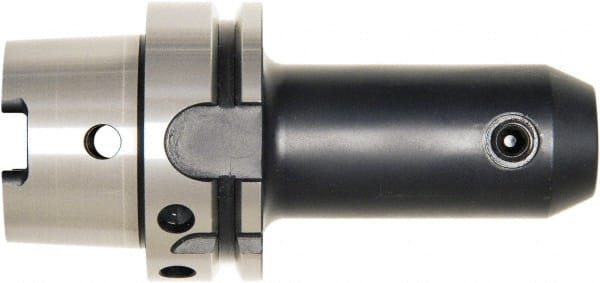

Bilz - HSK63A 1/2" Shank Diam Taper Shank 1/2" Hole End Mill Holder/Adapter - 1.38" Nose Diam, 3.94" Projection, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 55637276
Brand: Bilz
Model #: 66652163M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Inch) | 1.3800 |
| Projection (Decimal Inch) | 3.9400 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 46.00 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 5.2000 |
| Balanced to (RPM) | 20000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
