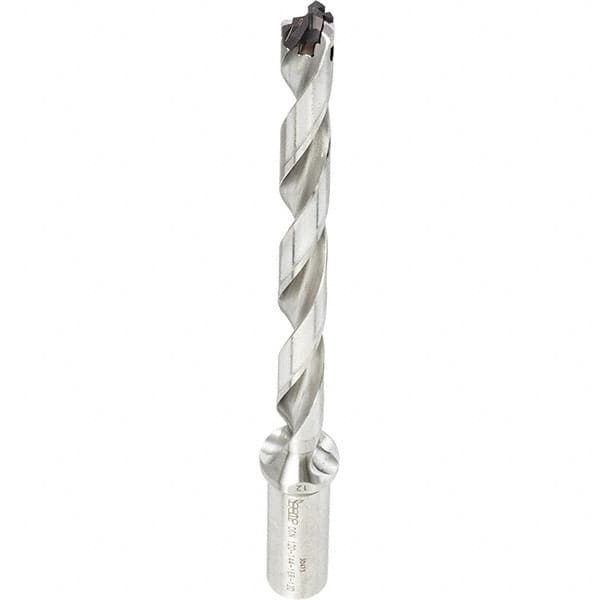

Iscar - 3/8 to 0.39" Diam, 12xD, 4.56" Max Drill Depth, 1/2" Shank Diam, 6.88" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 9 Seat Size, DCN Toolholder, Series SumoCham
Item #: 55668438
Brand: Iscar
Model #: 3323749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (Decimal Inch) | 0.3900 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 4.5600 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 9 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.0680 |
| Flute Length (Decimal Inch) | 4.5600 |
| Body Length (Decimal Inch) | 5.1100 |
| Overall Length (Decimal Inch) | 6.8800 |
| Shank Length (Decimal Inch) | 1.7700 |
