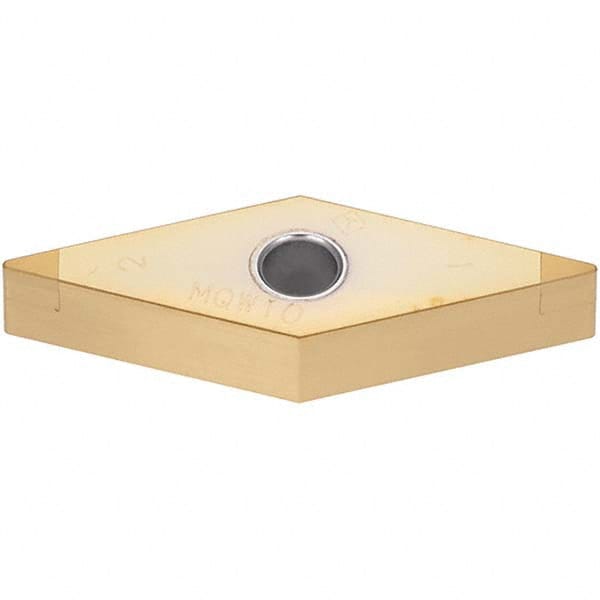

Turning Insert
Item #: 55682611
Brand: Tungaloy
Model #: 6822388
Product Specifications
| Insert Style | 2QP-VNGA |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Manufacturer Grade | BX480 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 35.0 |
| Series | VNGA |
| Coating Process | CBN |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.0870 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Iso Code | VNGA 332 |
| Standards | ISO |
| Chip Breaker | A |
