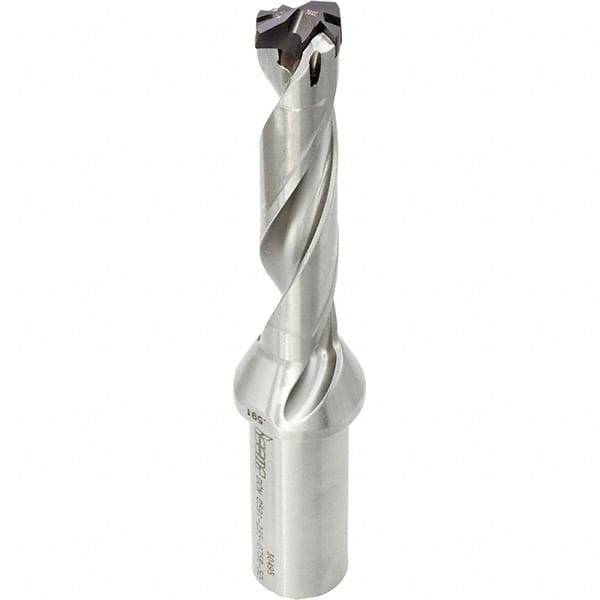

Iscar - 0.295 to 0.311" Diam, 8xD, 2.41" Max Drill Depth, 1/2" Shank Diam, 4.7" OAL, Replaceable Tip Drill - 7.5 Seat Size, DCN Toolholder, Series SumoCham
Item #: 55713739
Brand: Iscar
Model #: 3202951
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.2950 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 2.4100 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | 7.5 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.0540 |
| Flute Length (Decimal Inch) | 2.4100 |
| Body Length (Decimal Inch) | 2.9300 |
| Overall Length (Decimal Inch) | 4.7000 |
| Shank Length (Decimal Inch) | 1.7700 |
