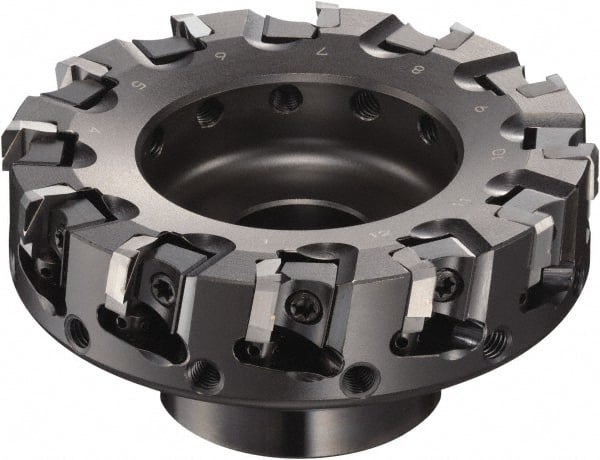

Sumitomo - 6" Cut Diam, 5/8" Arbor Hole, 2.374" Max Depth of Cut, 90° Indexable Chamfer & Angle Face Mill - 18 Inserts, NF-LDEN Insert, Right Hand Cut, 18 Flutes, Through Coolant, Series HF
Item #: 55720510
Brand: Sumitomo
Model #: 2S00059
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (mm) | 152.40 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 5/8 |
| Arbor Hole Diameter (Decimal Inch) | 0.6250 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.3470 |
| Insert Compatibility | NF-LDEN |
| Series | HF |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.3740 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HFFH |
| Number of Flutes | 18 |
| Maximum Body Diameter (Decimal Inch) | 6.0790 |
| Maximum RPM | 6000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | NF-LDEN12T3ZD |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Weldon Flat | No |
