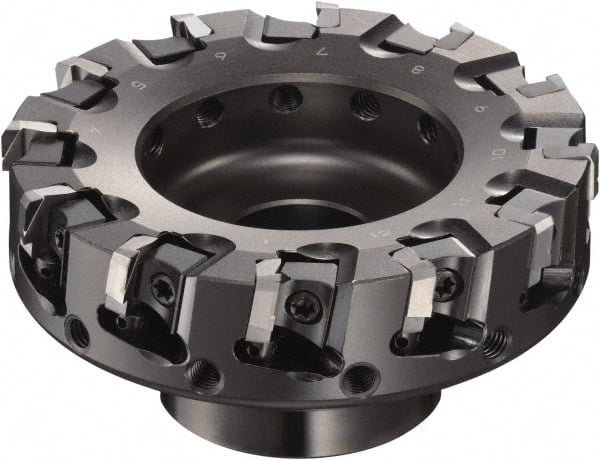

Sumitomo - 80mm Cut Diam, 10.4mm Arbor Hole, 40mm Max Depth of Cut, 90° Indexable Chamfer & Angle Face Mill - 10 Inserts, NF-LDEN Insert, Right Hand Cut, 10 Flutes, Through Coolant, Series HF
Item #: 55720643
Brand: Sumitomo
Model #: 2S00032
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1500 |
| Arbor Hole Diameter (mm) | 10.40 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | NF-LDEN |
| Series | HF |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 40.00 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HFF |
| Number of Flutes | 10 |
| Maximum Body Diameter (Decimal Inch) | 3.2300 |
| Maximum RPM | 11000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | NF-LDEN12T3ZD |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Weldon Flat | No |
