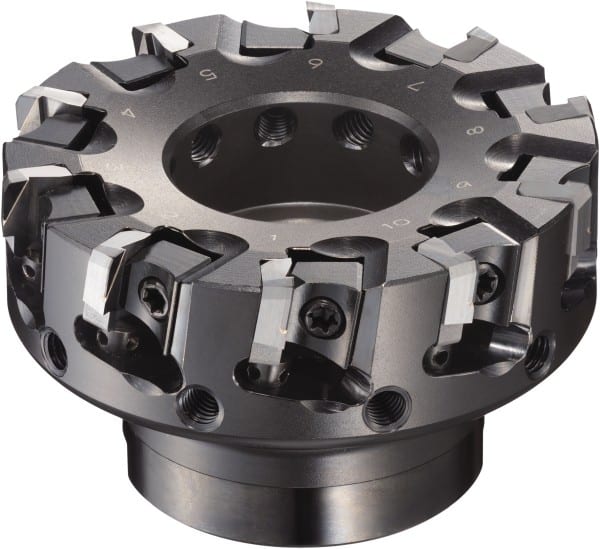

Sumitomo - 5" Cut Diam, 5/8" Arbor Hole, 2" Max Depth of Cut, 90° Indexable Chamfer & Angle Face Mill - 10 Inserts, NF-LDEN Insert, Right Hand Cut, 10 Flutes, Through Coolant, Series HF
Item #: 55720676
Brand: Sumitomo
Model #: 2S00054
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 5/8 |
| Arbor Hole Diameter (Decimal Inch) | 0.6250 |
| Lead Angle | 90 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | NF-LDEN |
| Series | HF |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.0000 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HFM |
| Number of Flutes | 10 |
| Maximum Body Diameter (Decimal Inch) | 5.0790 |
| Maximum RPM | 7500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | NF-LDEN12T3ZD |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Weldon Flat | No |
