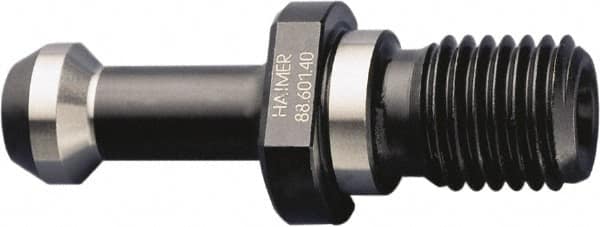

HAIMER - C Style, CAT40 Taper, 5/8-11 Thread, 45° Angle Radius, High Torque Retention Knob - 2.42" OAL, 0.5906" Knob Diam, 1.1602" Flange Thickness, 1.435" from Knob to Flange
Item #: 55736474
Brand: HAIMER
Model #: 88.631.40
Exact Tooling IR#: 04
Features and Benefits
High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
| Product Specifications | |
|---|---|
| Type | High Torque |
| Taper Size | CAT40 |
| Thread Size | 5/8-11 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.5906 |
| Through Coolant | No |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 2.4200 |
| Knob to Flange Length (Decimal Inch) | 1.4350 |
| Flange Thickness (Decimal Inch) | 1.1602 |
